6FX2001-5QD25-1AA0
Data sheet for Absolute encoder
MLFB-Ordering data

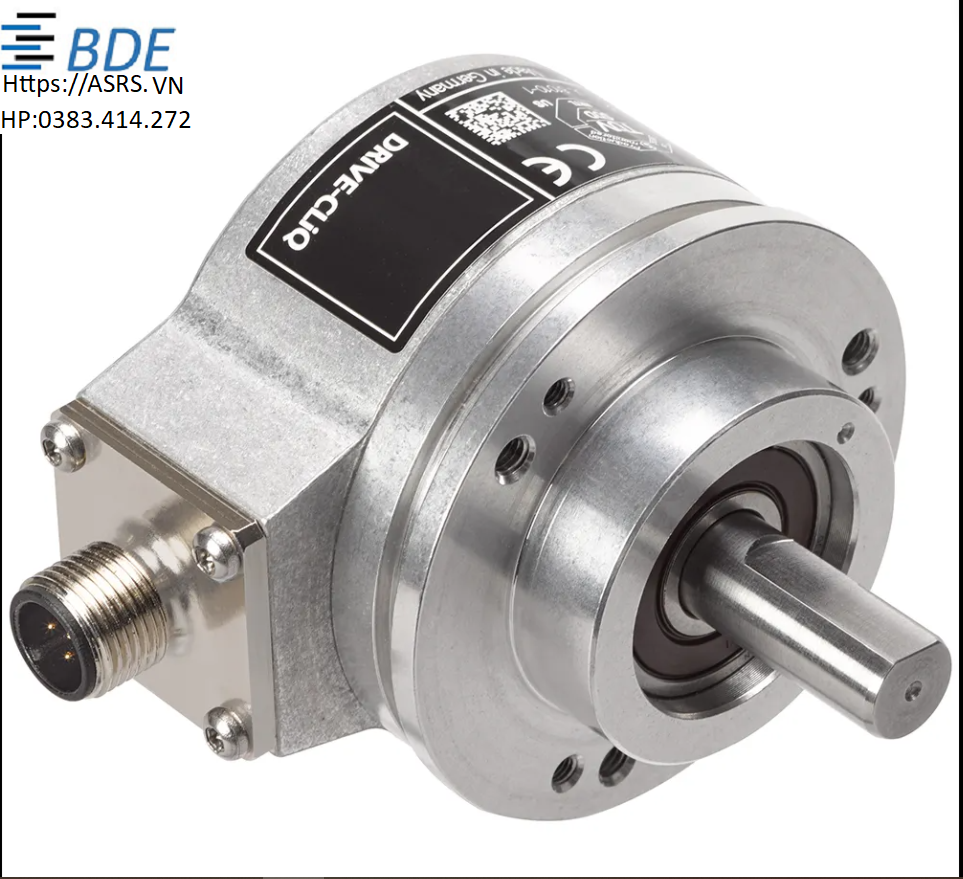

Figure similar
Electrical data Mechanical data
Operating voltage Up
Without shaft input
6 ms
n <= 6000 rpm
| Electrical | 14000 rpm |
| Mechanical | 12000 rpm |
– Radial at shaft end
| Connection type | |
| Resolution | |
| Incremental track | 2048 S/R, 1 Vpp (encoder-internal only) |
Code type
20 N
M12 DRIVE-CLiQ connector
, Radial
36 bit (24 bit Singleturn +12 bit
Multiturn)
| DRIVE-CLiQ DRIVE-CLiQ Yes 43 mA |
Short-circuit strength Max. power consumption Interface Data output |
Consignment no. :
Remarks :
Item no. :
Offer no. :
Order no. :
Project :
Client order no. :
IP67
2000 m/s²
Transmission rate 100 Mbit/s
100 m
| Sampling | Gray |
| Transmission | DRIVE-CLiQ |
Max. admissible speed
Load capacity
n > 6000 rpm
– Axial 10 N
– Axial 40 N
– Radial at shaft end 60 N
null
Degree of protection
With shaft input IP64
Net weight 0.3 kg
Cable length up to the
subsequent electronics, max.
DC 24 V – 15 % + 20 %
<= 0.01 Nm
<= 0.01 Nm
Friction torque (at 20°C)
Accuracy ± 20 ”
Starting torque (at 20°C)
-30 … 100 °C
Compliance with standards
Ambient temperature
Standards
CE, cULus
During operation
EMC class filter
Tested in accordance with DIN
EN 50081 and EN 50082
Moment of inertia of rotor
300 m/s²
Shaft length
0.00000290 kgm²
100000 rad/s²
10 mm
Vibration (55…2000 Hz), max.
20 mm
Shaft diameter
Angular acceleration, max.
Shaft version Solid shaft
Technical data are subject to change! There may be discrepancies between calculated and rating plate values.
